eepos jib swivel crane

eepos jib crane

  • Load capacity: up to 1.000 kg
  • Column height and boom length individually adjustable
  • Swivel range: up to max. 270°
Downloads File Type
Flyer eepos jib crane PDF (1,6 MB)

PRODUCT HIGHLIGHTS

  • attractive price
  • Up to 500 kg load capacity with a 8 m boom length
  • Up to 1.000 kg load capacity with a 4 m boom length
  • Swivel range up to 270°
  • Easy swiveling thanks to new joint bearing
  • Guyed construction, low dead weight of the boom
  • Smooth and precise running of the trolley
  • Individually adjustable column height and boom length
  • Power supply via trailing cable
  • Quick and easy assembly
  • Also available as a wall-mounted jib crane

The eepos jib crane – The economical solution for efficient lifting and slewing

The eepos jib crane is the ideal solution for ergonomic, safe, and precise load handling in production, logistics, assembly areas, and the automotive industry. With lifting capacities of up to 1.000 kg, jib lengths of up to 8 meters, and a slewing range of up to 270°, this aluminum jib crane offers maximum flexibility with minimal effort.

Thanks to the lightweight aluminum boom, loads can be moved with exceptional ease. This reduces the physical strain on employees, increases productivity, and ensures fatigue-free work in daily use. At the same time, the high-quality hollow aluminum profile rail allows for precise positioning of loads, thereby accelerating work processes and minimizing potential errors.

Another advantage of the eepos jib jib crane is its high adaptability. Column height, jib length, and lifting capacity can be individually tailored to specific requirements. This results in a customized lifting solution that optimally utilizes available workspace and sustainably improves material handling efficiency.

TECHNICAL DATA

Load capacity: to 1.000 kg
Boom length: 1.001 - 8.000 mm
Column height: up to 6.000 mm
Swivel range: to 270 °
Standard: EN13001, EN16851
Crane classification: U4 / Q3
Cantilever design: Guyed boom
Swivel movement: manually

LOAD CAPACITY

1.000 2.000 3.000 4.000 5.000 6.000 7.000 8.000
125
250
500
1.000

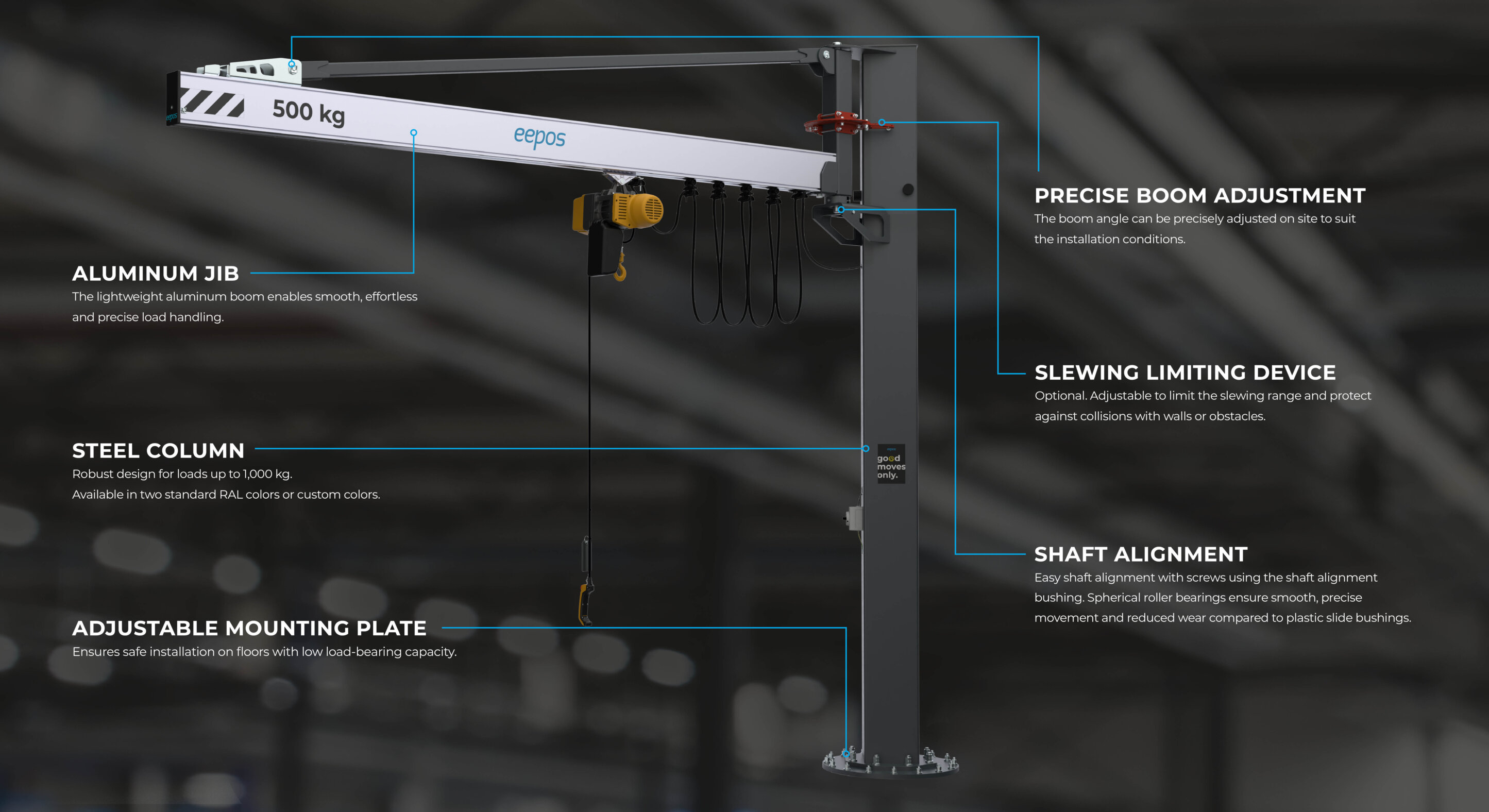

THE JIB CRANE AT A GLANCE

Eepos Jib Overview 1980x1080px

FEATURES

eepos jib tensioning

Easy height adjustment of the boom

The lightweight aluminum boom can be easily and precisely adjusted in height and angle, exactly to your individual needs.

spherical bearing eepos jib

Easy swiveling thanks to new joint bearing

The integrated spherical bearing in the rotary bearing ensures minimal friction and guarantees an unsurpassed smooth swiveling of the boom.

slew range limiter eepos jib

Optional: Swivel limiter

Individually adjustable to define the desired swivel range and prevent the profile end from hitting walls or other obstacles. Easy to install and adjust.
